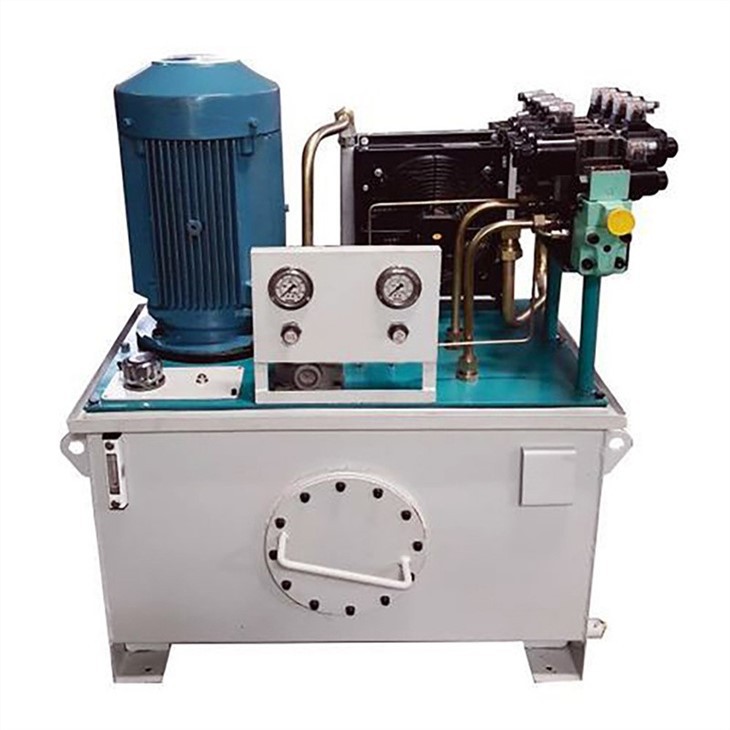

Manual Hydraulic Power Station

The hydraulic cylinder system includes swing hydraulic cylinder, including spiral swing, double blade, single blade and other forms. The spiral swing type is divided into single spiral swing and double spiral swing. Now the double spiral is more commonly used. The linear motion of the hydraulic cylinder piston is divided into linear motion and rotary motion by the double spiral vice, so as to realize the swing motion. Blade type: the stator block is fixed on the cylinder block, while the blade and rotor are connected together. According to the oil inlet direction, the blades will drive the rotor to swing back and forth.

Hydraulic station is an independent hydraulic device, it according to the driving device (host) requirements of oil supply, and control the direction of the oil flow, pressure and flow, it is suitable for the host and hydraulic device can be separated under a variety of hydraulic machinery, driven by the motor to rotate the oil pump, pump from the oil tank after oil, mechanical energy into hydraulic oil pressure energy.
After the user purchase, as long as the hydraulic station is connected with the actuator (cylinder and oil motor) on the main engine with tubing, the hydraulic machinery can realize a variety of specified actions and working cycles.

All parameters can be customized

Parameters of the sample

HCIC has a professional product quality test during the production process. These include the cylinder friction test of the hydraulic cylinder, the shock durability test, the drift rate test, the circulation test and the pressure test (the rated pressure is 150%in 5 minutes). The hydraulic cylinder test system is divided into single -acting and dual -action tests. When 100 % complete the test, they will be transferred to the quality inspection department for the final quality inspection link, and finally paste the label to put the market.

According to the mechanism form of the pump device, installation position can be divided into:
1) Upper vertical: the pump device is vertically installed on the cover plate of the tank, mainly used for quantitative pump system.
2) Upper horizontal: the pump device is horizontally installed on the cover plate of the tank, mainly used for variable pump system, so as to facilitate flow regulation.
3) Side-mounted: the pump device is horizontally installed on a separate basis beside the tank. The side-mounted type can be equipped with a spare pump. It is mainly used for the system with a large tank capacity of 250 liters and a motor power of more than 7.5 kW.

Q1. What are your terms of payment?

A: T/T 30% as deposit, 70% before delivery. We will show you the photos of products and packaging before you pay the balance.

Q2. What are your delivery terms?

A: Ex-factory price, FOB price, CIF price and delivery price.

Q3. What are your packing conditions?

A: Usually, we pack the goods in neutral white boxes and brown cartons. If you have a legally registered patent, we can pack the goods in your brand packaging box after receiving your authorization letter.

Q4. How about your delivery time?

A: Generally speaking, it takes 30 to 60 days after receiving the advance payment. The specific delivery time depends onAccording to the item and quantity of your order.

Q5. Can you produce according to the sample?

A: Yes, we can produce according to your samples or technical drawings. We can make molds and fixtures.

Q6. What is your policy sample?

A: If we have ready-made parts inventory, we can provide samples, but the customer must pay the sample cost and Express fee.
