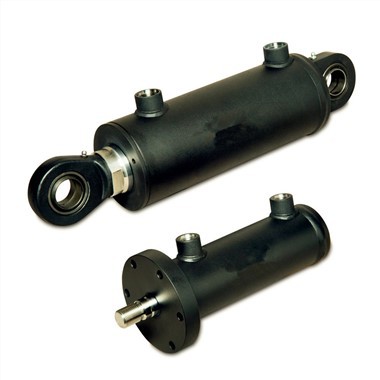

Small Pneumatic Hydraulic Cylinders

(1) The plunger is only supported by the cylinder liner and does not contact the cylinder liner, so the cylinder liner is easy to process, so it is suitable for long-stroke hydraulic cylinder;

(2) Plunger hydraulic cylinder is a single-acting cylinder, which can only realize one-way movement through hydraulic pressure. The return stroke of the plunger depends on other external forces or the weight of the plunger;

(3) The weight of the plunger is usually large. When placed horizontally, the plunger is prone to sag due to its own weight, resulting in wear of the seal and guide side, so its vertical use is more advantageous.

The cavity in the cylinder block of an engine that houses the piston. Is the piston movement track, in which the gas combustion and expansion, through the cylinder wall can also disperse a part of the gas to the explosion of residual heat, so that the engine to maintain a normal operating temperature. Cylinder types are integral and single cast. Single casting is divided into dry type and wet type two. Cylinder and cylinder body cast into a whole called integral cylinder; When the cylinder and cylinder body are cast separately, the single cast cylinder barrel is called the cylinder liner. Cylinder liner and cooling water direct contact is called wet cylinder liner; Do not contact with the cooling water directly called dry cylinder liner. In order to maintain the tightness of the contact between the cylinder and the piston and reduce the friction loss of the piston moving in it, the inner wall of the cylinder should have high machining accuracy and precise shape and size.

All parameters can be customized

Parameters of the sample

1.High-altitude operation machinery sends operators to the designated position in the air through the lifting platform for construction. Due to the high operation height, it has high requirements for safety, reliability, comfort and maneuverability. The cylinder product has realized modularization, serialization and lightweight.

Product highlights:

① The application of standardized design, welding and anti-loosening patented technology makes the product more reliable;

②Lightweight design minimizes the weight and makes the equipment safer and more efficient;

2. Simple design, convenient disassembly and maintenance;

① Single-acting cylinder: there is only a piston rod at one end. The gas is supplied from one side of the piston to generate air pressure, and the air pressure pushes the piston to generate thrust to extend and return by spring or dead weight.

② Double-acting cylinder: alternately supply air from both sides of the piston and output force in one or two directions.

③ Diaphragm type cylinder: replace piston with diaphragm, output force in only one direction, and reset with spring. It has good sealing performance, but short stroke.

④ Impact cylinder: This is a new type of element. It converts the pressure energy of compressed gas into the kinetic energy of the piston moving at high speed (10-20 m/s) to do work.

⑤ Rodless cylinder: the general name of cylinder without piston rod. There are magnetic cylinders and cable cylinders.

Our team provides considerate service and assistance for overseas partners' hydraulic cylinder and hydraulic system projects, whether individual projects, OEM or ODM projects. We also provide a wide range of customized services to meet your project needs. We have been recognized as a reliable supplier of many international partners.

A variety of customized cylinder manufacturing, including single-stage cylinder (single-acting and double-acting), single-acting and double-acting telescopic (small and large aperture), double-head cylinder, back design, rolling mill cylinder, pull rod cylinder, accumulator, marine steering cylinder, stainless steel and standard size welding production line, etc.

Q1. What are your terms of payment?

A: T/T 30% as deposit, 70% before delivery. We will show you the photos of products and packaging before you pay the balance.

Q2. What are your delivery terms?

A: Ex-factory price, FOB price, CIF price and delivery price.

Q3. What are your packing conditions?

A: Usually, we pack the goods in neutral white boxes and brown cartons. If you have a legally registered patent, we can pack the goods in your brand packaging box after receiving your authorization letter.

Q4. How about your delivery time?

A: Generally speaking, it takes 30 to 60 days after receiving the advance payment. The specific delivery time depends onAccording to the item and quantity of your order.

Q5. Can you produce according to the sample?

A: Yes, we can produce according to your samples or technical drawings. We can make molds and fixtures.

Q6. What is your policy sample?

A: If we have ready-made parts inventory, we can provide samples, but the customer must pay the sample cost and Express fee.
