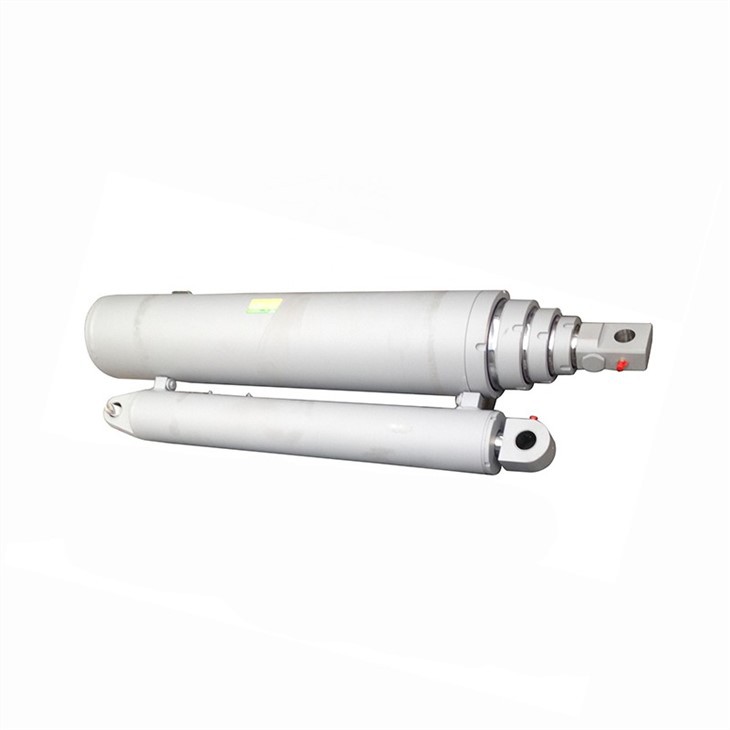

5 Stage Telescopic Hydraulic Cylinder

Our company independent research and development section of multi-stage telescopic electric cylinder can be used in the warehouse inventory, monitoring, logistics transportation needs the work high above the field. Multiple class multi-stage telescopic electric cylinder can control effectively trip in large degree; Range can be up to 10 meters range; The payload up to 2 tons of force; The life of the efficient; Work efficiency can be 12 h; Between 24 ~ 220 v power supply can match, being a small installation size, strength, stable operation, can one day rise section can also be more rise at the same time; Safety device using magnetic sensor or proximity switch to limit control, machinery for safety protection.

Repair process:

1. The material at 24℃ to fully achieve the performance of 24 hours, in order to save time, can be raised by the halogen tungsten lamp temperature, temperature each increase of 11℃, curing time will be shortened by half, the best curing temperature of 70℃.

2.  After the material is solidified, use fine grindstone or scraper to repair and smooth the material above the surface of the guide rail, and the construction is completed.

All parameters can be customized

Parameters of the sample

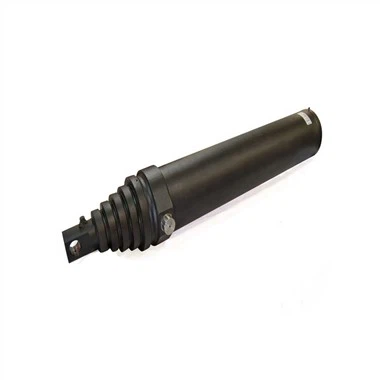

When the pressure oil enters through the rodless chamber, the cylinder with the largest effective area of the piston begins to extend, and when it reaches the end, the cylinder with the next largest effective area of the piston begins to extend. The extension sequence of the telescopic hydraulic pressure is extended from large to small, which can obtain a very long working stroke. The smaller the effective area of the extension cylinder, the faster the extension speed. Therefore, the extension speed is slow and fast, and the corresponding hydraulic thrust decreases from large to small; This change law of thrust and speed is suitable for the requirements of various automatic loading and unloading machinery on thrust and speed. The retraction sequence is generally from small to large, and the axial length of retraction is short, occupying less space, and the structure is compact. It is often used in the hydraulic system of construction machinery and other walking machinery, such as crane, tipper car, etc.

Q1: Can you provide samples before large orders?

A: Yes.

Q2: Can you produce non-standard or customized cylinders?

A: Yes, we have our own factory, we can meet the needs of customers.

Q3: How long is the warranty?

A: We offer a 12-month warranty.

Q4: Can I print my brand on the product?

A: Of course.

Q5:When is your delivery time?

A: 3-5 days if there is stock, 15-25 days if there is no stock.

Q6:How about your quality?

A: Most domestic excavator/loader/engineering vehicle companies are our customers, and we are confident to provide good products for foreign customers.
