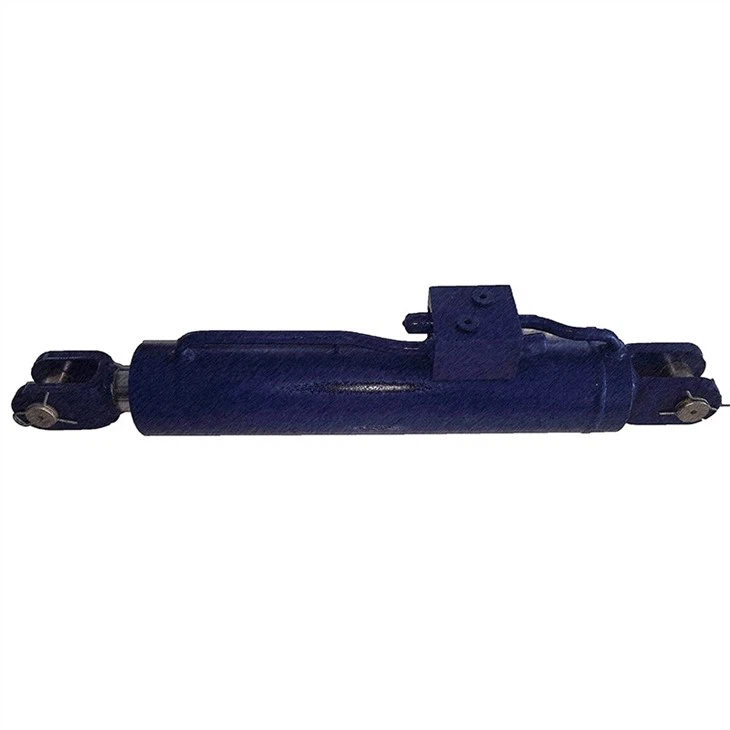

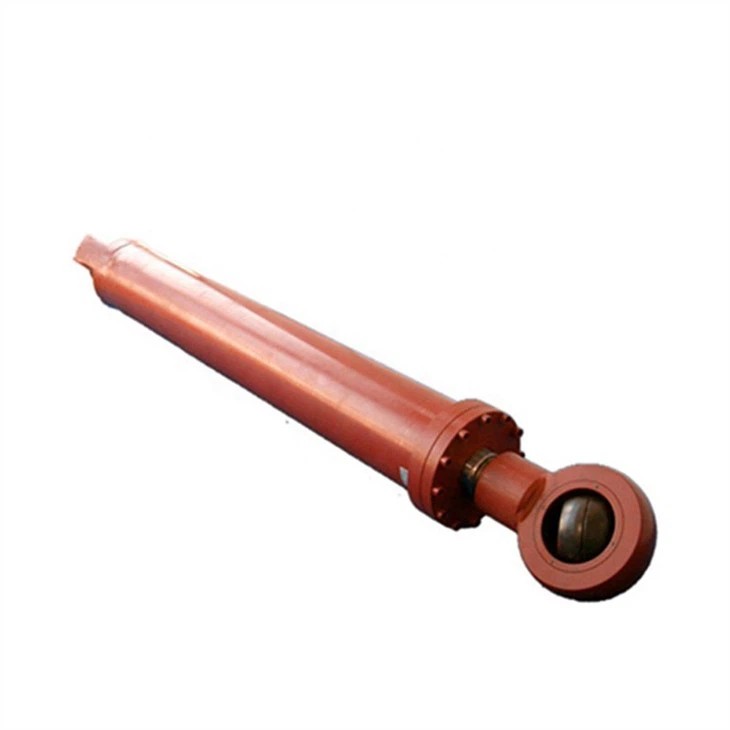

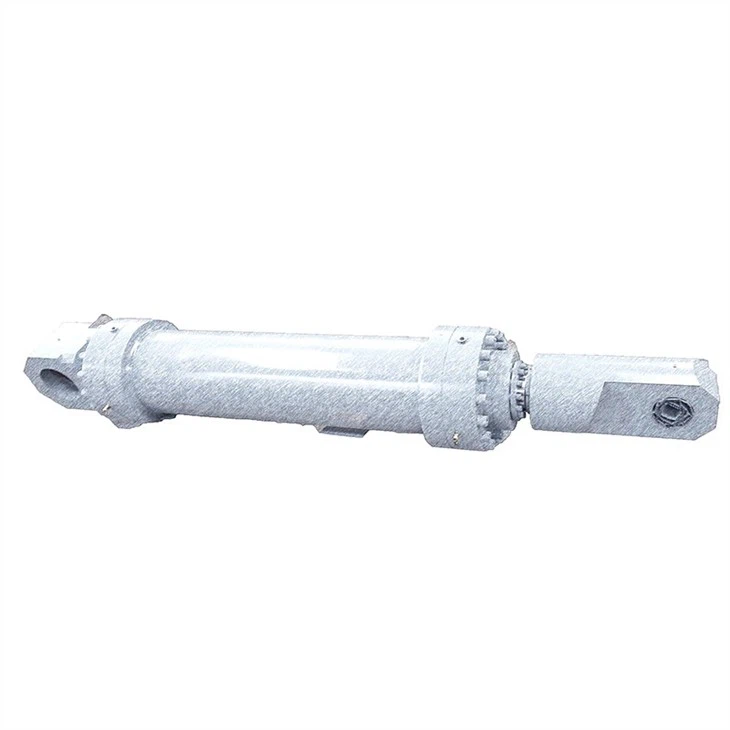

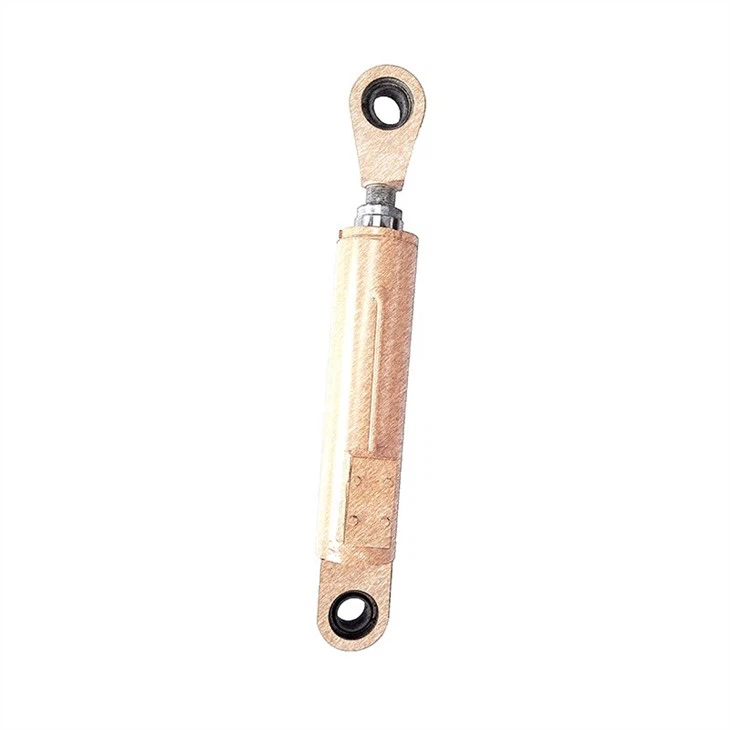

Double Acting Telescopic Hydraulic Cylinder
Shaft Diameter:25mm-750mm
Machinery Test Report:Provided
Structure:Piston Cylinder
Body Material:Steel
Material:Stainless Steel #304 #316
Standard or Nonstandard:Nonstandard
Working Pressure:10Mpa(1450PSI) - 35 Mpa(5000PSI)
MOQ:1pcs
Seal kits:According to customer requirements
Quality:100% Tested
Standard or Nonstandard:Standard
Power:Hydraulic
Color:Customer Requirement
Working medium:Hydraulic oil
1.No Gears Required: Hydraulic cylinders do not require gears, which simplifies the design and installation process.
2.Flexible Design: Hydraulic cylinders can be designed and manufactured to fit variable application requirements.
3.Quiet Operation: Hydraulic cylinders can operate in a quiet and smooth manner producing minimal noise and vibration.
4.Immediate Stop: Hydraulic cylinders provide an immediate stop when the controlling pressure is removed.
5.Positive Displacement: Hydraulic cylinders provide positive displacement as the output is determined by the volume of the cylinder.
6.Rotary Motion: Hydraulic cylinders can generate rotary motion via the rotation of a shaft.
1. Highly accurate and reliable operation.
2. Cushioned guiding system and stroke control.
3. Can be used with multiple cylinders in tandem.
4. Can be used in extreme conditions and temperatures.
5. Longer service life.
6. Low installation costs.
7. Reduce stall vibrations.
8. High thrust output.
9. Compact installation with flexible mounting options.
10. Better adaptability for tight spaces and confined areas.
All parameters can be customized
Parameters of the sample
Technical Parameter
|
No |
Description |
Data |
|
|
1 |
bore diameter |
≤1800mm |
|
|
2 |
stroke |
≤15000mm |
|
|
3 |
pressure |
≤750bar |
|
|
4 |
capacity |
Customized cylinder production: 100,000/Year |
|
|
5 |
coating |
NSS(h) |
Application |
|
6 |
2HCr |
48~72 |
mild corrosive |
|
7 |
2Ni+HCr |
200~500 |
moderate~strong:construction drilling mining |
|
8 |
APS |
≥8000 |
extreme:marine atmosphere sheltered zone |
|
9 |
HVOF |
≥10000 |
extreme:Sea water submarged; marine splash zone |
HCIC has a professional product quality test during the production process. These include the cylinder friction test of the hydraulic cylinder, the shock durability test, the drift rate test, the circulation test and the pressure test (the rated pressure is 150%in 5 minutes). The hydraulic cylinder test system is divided into single -acting and dual -action tests. When 100 % complete the test, they will be transferred to the quality inspection department for the final quality inspection link, and finally paste the label to put the market.
1. Highly efficient and reliable power generation.
2. Low hydraulic pressure losses.
3. Consistent speed and pressure control.
4. Supports automation processes.
5. Increased production rates with reduced downtime.
6. Best for working with fluids under high pressure.
7. Ideal for load-carrying applications.
8. Low fatigue at higher loads.
9. Seal options to suit specific applications.
10. Easy-to-maintain system.
Before the official payment of customers, we will provide professional product design, quotation and other services according to customer needs, and our cost -effective is very reasonable, so old customers depend on us very much. After customer payment, we will provide 2 years of product quality tracking services and warranty services to ensure the vital interests of customers.
We are the top machinery production and processing factory in China, with 30 years of export experience, and our after-sales service satisfaction ratio is always 100%. Due to our advantages in product quality, price and service, our sales are all from old customers'place the order again and again. We want to cooperate with medium and large buyers, our service will make you satisfied, to achieve a win-win situation.
1.What is your payment terms?
1)T/T 2)L/C.
2.What is your shipping way ?
Express (DHL,Fedex,TNT),By air ,Or Sea. We will choose one shipping way to suit customers request .
3.How long is your machine warranty?
Warranty of our product is one year,but artificial damage and incorrect use is not included.
4.What is your delivery time ?
It depends on your order. Normally3- 7days for samples, 30-45days for standard, 30-60 days for customized.
