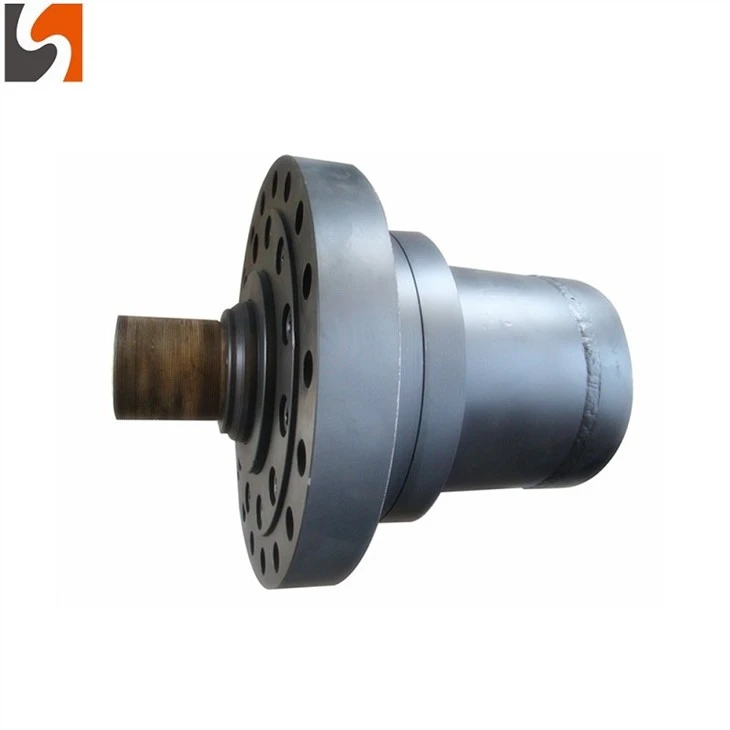

Heavy Duty Telescopic Hydraulic Cylinder
Shaft Diameter:40mm-450mm
Core Components:ROD
Structure:Piston Cylinder
Body Material:Steel
Working Pressure:16-30Mpa
Color:Customer Requirement
Type:Double /Single Action
Standard or Nonstandard:Nonstandard
Power:Hydraulic
Material:45# Steel
MOQ:1pcs
The hydraulic cylinder system includes swing hydraulic cylinder, including spiral swing, double blade, single blade and other forms. The spiral swing type is divided into single spiral swing and double spiral swing. Now the double spiral is more commonly used. The linear motion of the hydraulic cylinder piston is divided into linear motion and rotary motion by the double spiral vice, so as to realize the swing motion. Blade type: the stator block is fixed on the cylinder block, while the blade and rotor are connected together. According to the oil inlet direction, the blades will drive the rotor to swing back and forth.
The hydraulic cylinder can convert hydraulic energy into mechanical energy and perform straight movement. Its simple structure and stable work can bring more convenience to reduce the use of other foreign objects. Therefore, the hydraulic cylinder is widely used in various machinery.
All parameters can be customized
Parameters of the sample
Technical Parameter
|
Item |
Specifications |
|
Product Name |
Customized Mining Forging Machinery Heavy Work Cylinders Of High Quality Stainless Steel Hydraulic Cylinder Long Stroke Short |
|
Certificate: |
CE, ISO9001 |
|
Production Capacity: |
200,000 pcs per year |
|
Sample Time |
7-10 days |
|
Brand |
HCIC or customer's logo |
|
Service |
OEM & ODM |
|
Piston Rod |
Chrome or nickel plated,ground & polished piston rod |
|
Seal Type |
Parker,NOK, BUSAK SHAMBAN or as customer's requirement |
|
Tube |
High tensile cold drawn tube, precision honed for extended seal life |
|
Delivery Time |
Based on order quantity. normally 15-30 days. |
|
Price Advantage |
Competitive factory price with guaranteed quality |
|
Business Type |
Manufacturer & Exporter |
Cylinder is the most important part of construction machinery. The traditional processing method is: broaching cylinder block - fine boring cylinder block - grinding cylinder block. The rolling method is as follows: cylinder drawing cylinder block - fine boring cylinder block - rolling cylinder block. The process is three parts, but the time comparison: grinding cylinder block 1 meter is about 1-2 days, and rolling cylinder block 1 meter is about 10-30 minutes. Investment comparison: grinder or honing machine (tens of thousands to millions), hob (tens of thousands to tens of thousands). After rolling, the surface roughness of the hole is from Ra3.2 to 6.3 μ M decreases to Ra0.4 ～ 0.8 μ m. The hardness of the hole increases by about 30%, and the fatigue strength of the inner surface of the cylinder increases by 25%. If only the influence of the cylinder is considered, the service life of the cylinder can be increased by 2-3 times. The efficiency of drilling and rolling process is about 3 times higher than that of grinding process. The above data show that the rolling process is effective and can greatly improve the surface quality of the cylinder.
HCIC's quality custom products are produced for OEM applications in a wide variety of worldwide industries, including manufacturing engineering machinery, loaders hydraulic cylinders, vehicle cylinders, construction, forestry, waste management, mining, material handling, industrial applications, agriculture, manufacturing, transportation, marine applications and oil field equipment. Our success has been built on the engineering expertise and manufacturing capabilities we offer to meet the very specific demands of our industry clients.
The mainly products are hydraulics pumps,hydraulics valves,hose tube fittings and engineering system solution. Our products are widely used at diesel engine, wind turbine, shipbuilding industry, offshore exploration, steel industry, mobile equipment, high-speed railways and factory automation.
HCIC has very mature technologies and products in the fields of committed to providing products technologies in aerospace, climate control, electromechanical, filtration, fluid and gas handling, hydraulics, pneumatic, process control and seal & shielding of customized services for our distinguished clients. As a professional control, therefore we can provide the best solutions for nuclear power, shipbuilding and other industries so as to create values for our customers.We can provide all kinds of system service provider.
Q1:How is quality ensured?
— All our processes strictly adhere to ISO-9001 procedures.And we have one year's quality warranty against B/L issue date.
Q2:Can I buy 1 piece of each item to test the quality?
— Yes, we are pleased to send you 1 piece to test the quality if we have stock for the item you need.
Q3: How to order and make payment?
— We will send proforma invoice to you and you can pay via T/T bank transfer , L/C , WESTION UNION , ESCROW , PAYPAL and aliexpress ETC.
Q4: What is your Minimum Order Quantity?
— Different products have different MOQ,but we can sell you even one piece if we have stock of the model you need.
Q5:What about delivery time?
— If we have stock we can send goods to you within 7 working days. If we don't have stock,generally, it needs 10 to 40 working days.
